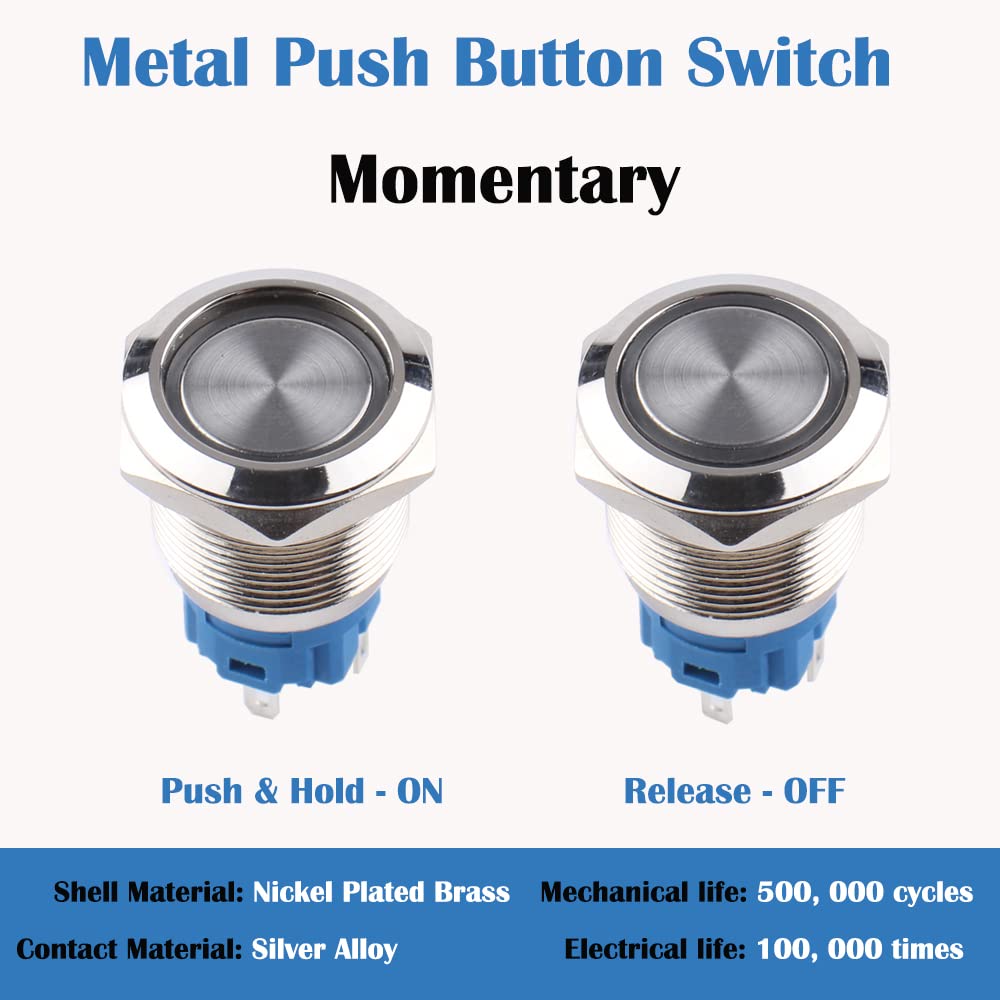

5pcs 19mm Metal Momentary Push Button Switch 12V-24V (ON)-Off 1NO 1NC 3/4" Mounting Hole Waterproof Plug in Halo Ring LED Red Light
Product details
| Management number | 236844069 | Release Date | 2026/07/10 | List Price | US$6.20 | Model Number | 236844069 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- Mounting Hole: 19mm(3/4"); Head Type: Flat Head; Structure: 1NO 1NC; LED Light: 5A,12V-24V; Halo Ring Red; LED life: 40,000 hours
- Momentary Switch: Press the button and hold--ON, Release--OFF; Electrical life: 100, 000 times, Mechanical life: 500,000 cycles
- 4 wiring methods: 1NO 1NC; LED light can be always on, or illuminates when the device is working; 5 brass terminals for connecting or soldering just as you like
- Protection Degree: IP66 Waterproof and dustproof; IK09 Anti-vandal rate. It can be used in wet or dusty environment; But Don’t immerse the button switch in water
- Widely Applications: Suitable for car, computer, instrument and meter industry, door bell, home appliance etc.
| ASIN | B0FS66S2W9 |
|---|---|
| Color | Red |
| Terminal | Screw, Solder |
| Brand Name | DMWD |
| Unit Count | 5.0 Count |
| Part Number | AN5-TDN-ZF-HX-19R |
| Switch Type | Push Button |
| Contact Type | Normally Open, Normally Closed |
| Control Type | Momentary |
| Manufacturer | DMWD |
| Material Type | Brass |
| Mounting Type | Through Hole Mount |
| Connector Type | Plug In |
| Control Method | Push Button |
| Current Rating | 5 Amps |
| Operation Mode | ON-OFF |
| Item Dimensions | 0.86 x 0.86 x 1.4 inches |
| Contact Material | Brass |
| Operating Voltage | 12 Volts |
| Compatible Devices | Any device requiring a 12V-24V, 5A switch with a 19mm mounting hole and compatible with IP66 waterproof and dustproof rating, IK09 anti-vandal rate. |
| Number of Positions | 5 |
| Compatible with Vehicle Type | Car, Home Appliance |
